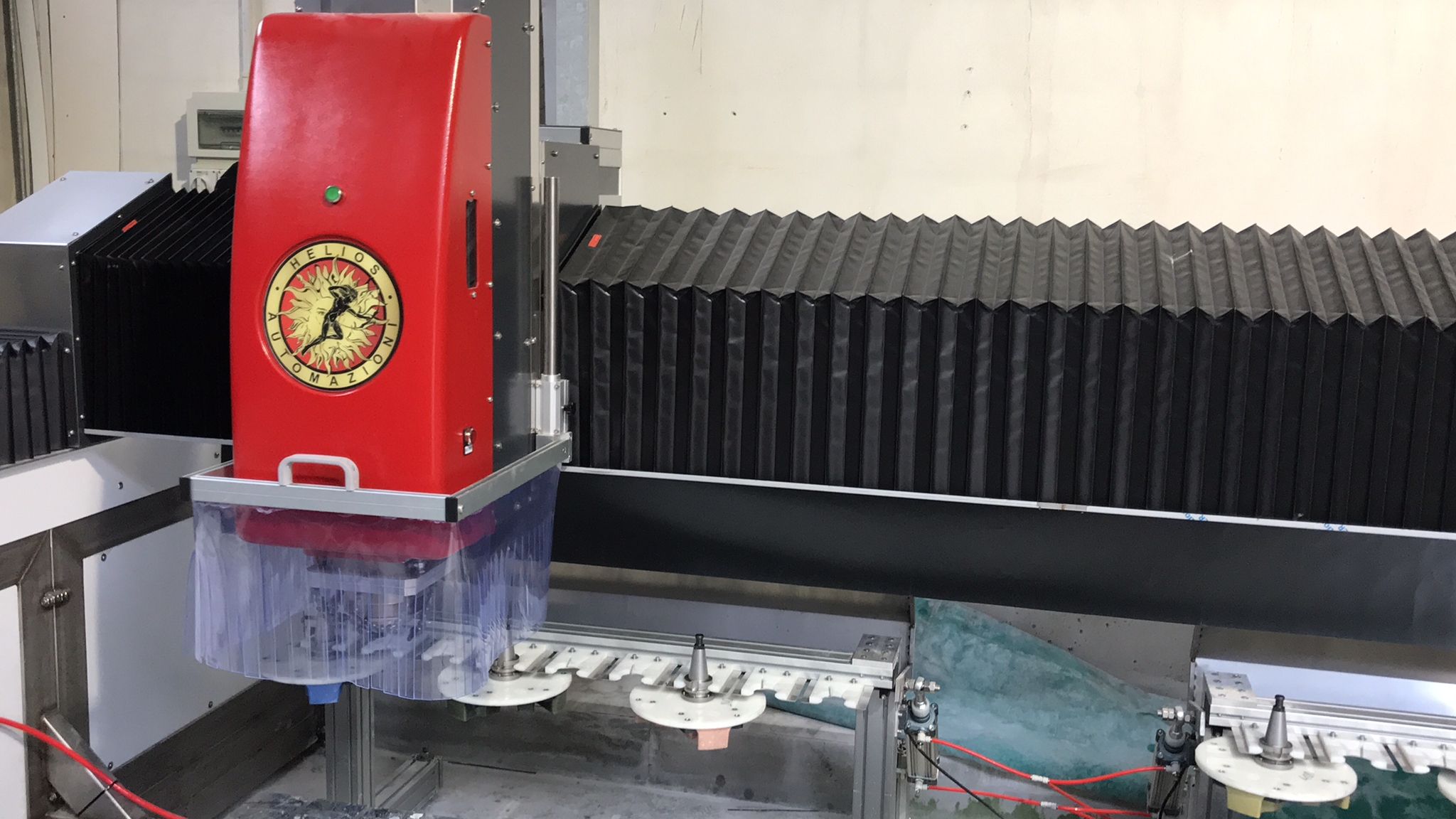

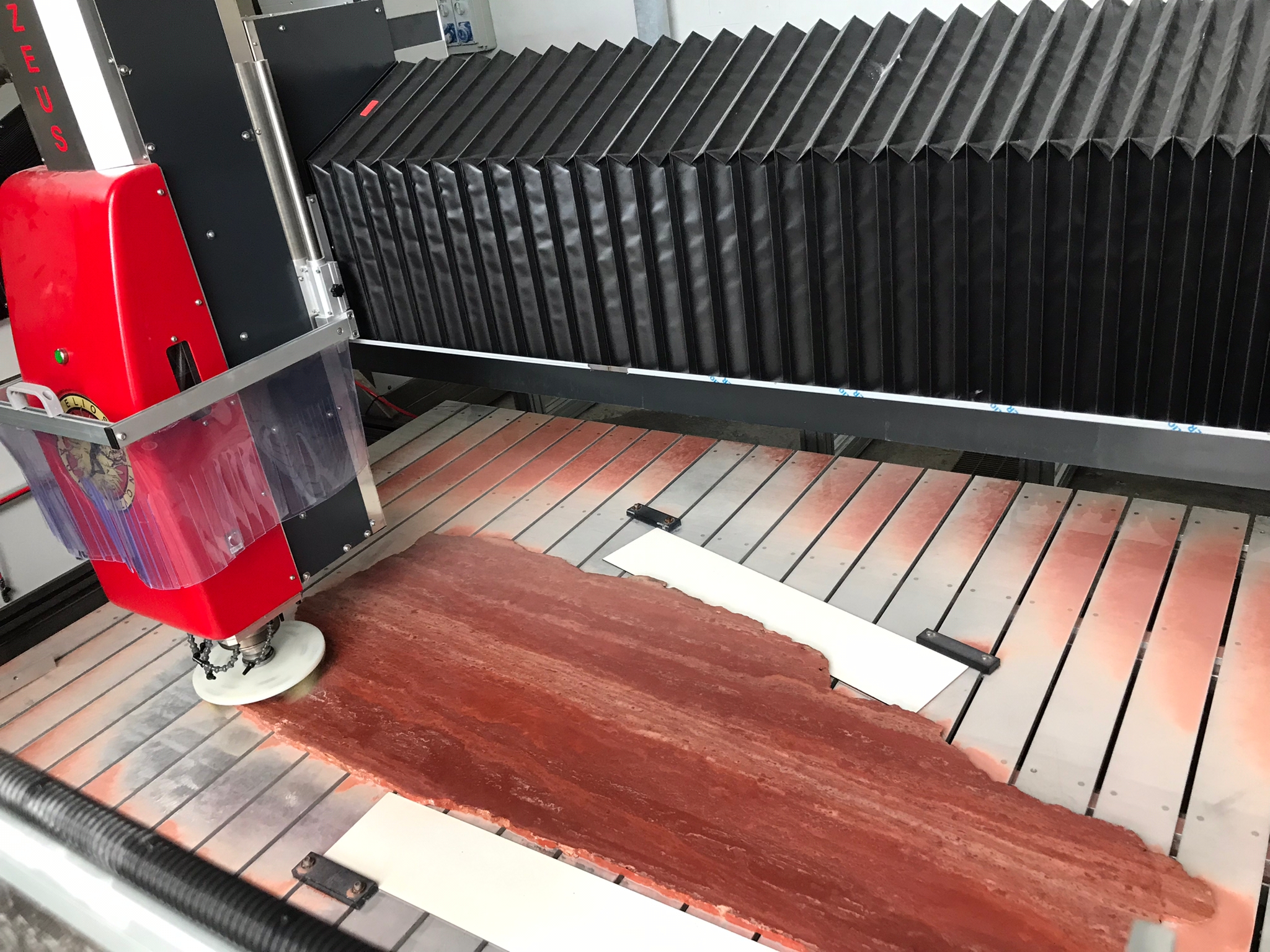

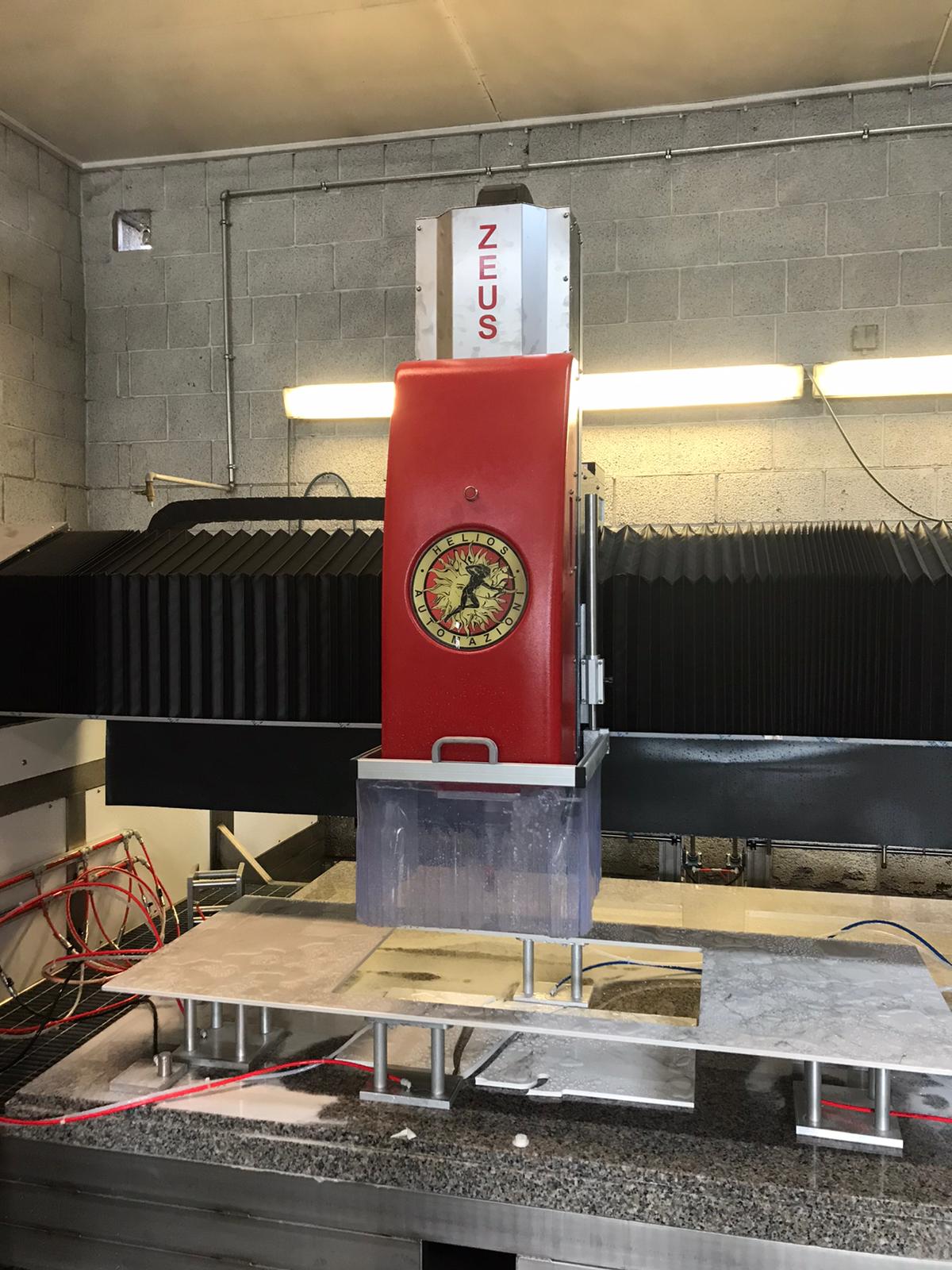

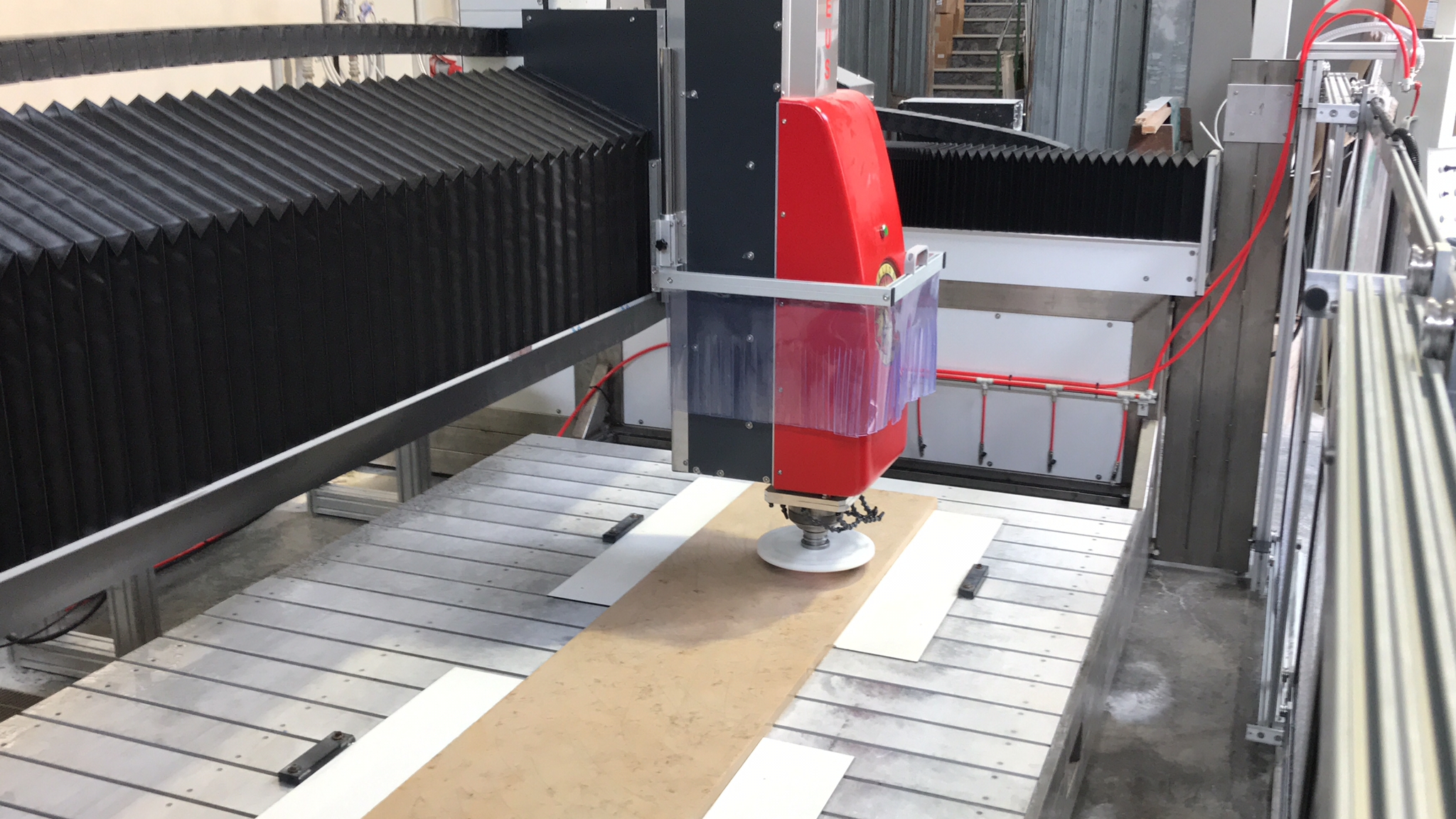

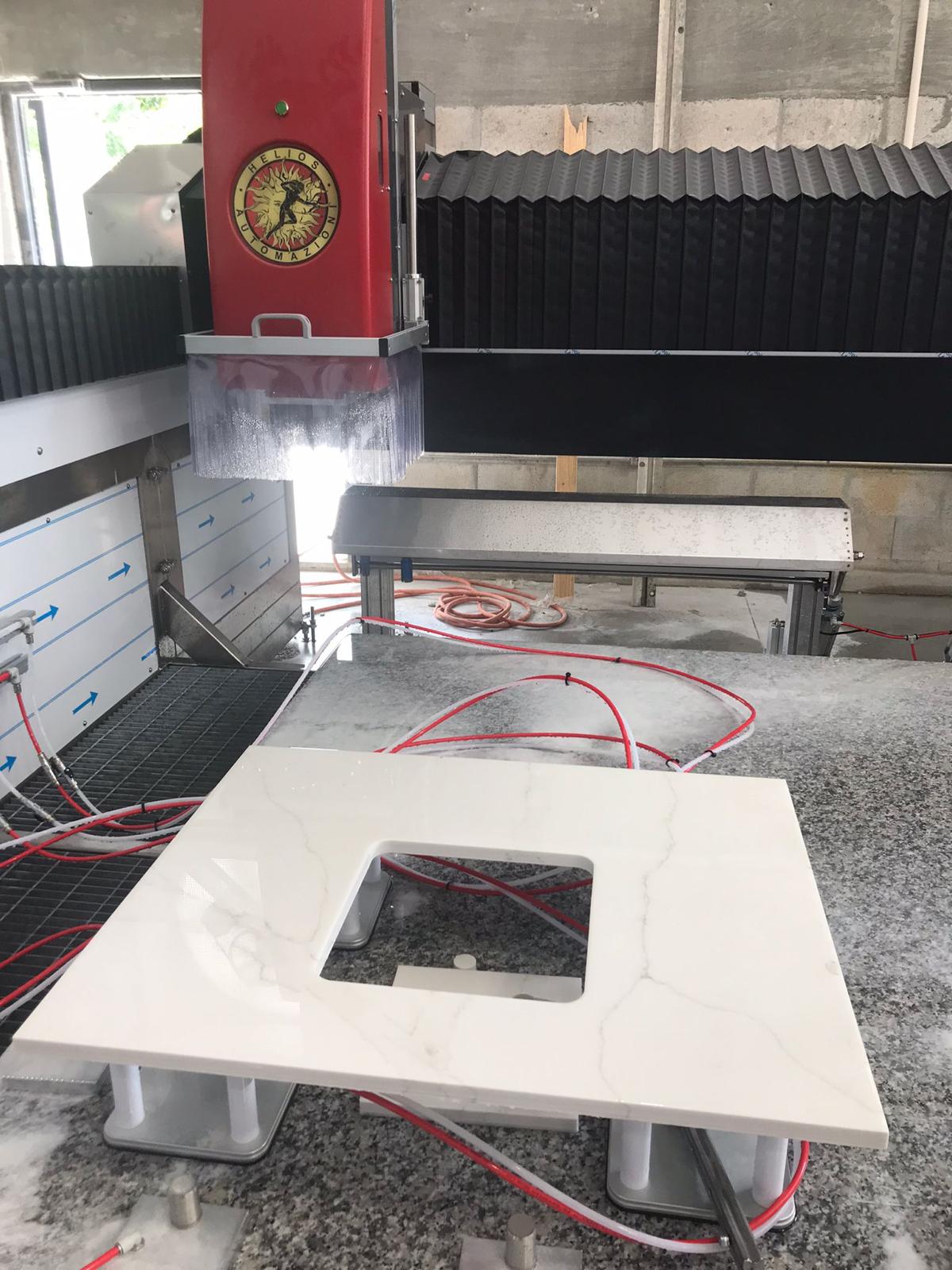

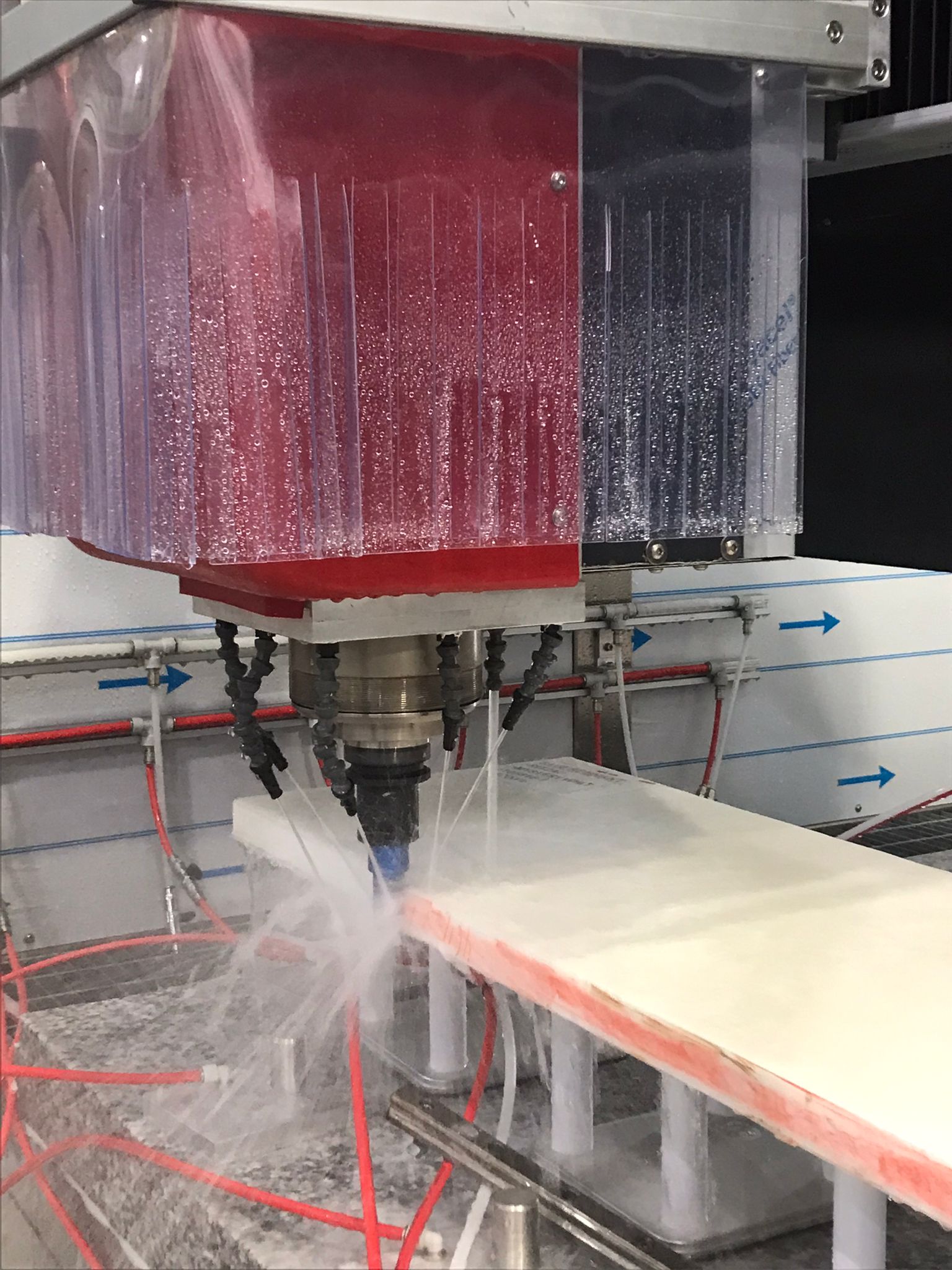

Helios Zeus Lux is a monolithic 3-axis CNC machining center with a slab polishing system. The big working area makes it suitable for every workshop looking for versatility and precision. It is the best product for the interior design sector (especially for the fabrication of kitchen and bath tops). The finished product is extremely thorough, and it doesn’t need any extra hand work. Daily work has never been so easy and fast.
| Monolithic stainless steel structure | Thanks to the monolithic stainless steel structure, Zeus Lux is a sturdy machine, that preserves its quality over the time |
|---|---|
| Precision and reliability | The use of recirculating ball screws makes the machine’s movements extremely precise, thus producing highly detailed works |
| Aluminium rectified table | The aluminum rectified table guarantees the integrity of the table and a total resistance to the processes stress and to corrosion. The calibration, performed directly by the machining center, ensures the perfect flatness of the support surface |
| Automatic tool change and tools magazine | Zeus Lux with automatic tool change manages all the machining center functions. The magazine, containing 12 positions, ensures the maximum versatility in the tools choice. Its capacity can be modified according to specific needs |
| Security doors | The front security doors have got a manual sliding system with automatic machine check sensor in case of opening |
| Industry 4.0 certification | The Industry 4.0 certification underlines the up-to-date technology, which allows advanced connectivity and integration into modern production lines. |
| Full warranty | The full 2-year warranty confirms the Helios commitment to product quality and reliability. |
| Zeus Lux | |
|---|---|
| Overall dimensions | 212,59 x 137,79 x H118,11 in |
| Axes stroke | X131,10 in - Y78,74 in - Z17,32 in - W0° ÷ 360° - A0° ÷ 90° |
| Power supply | 400 V (3P+N+GND) 50/60 Hz |
| Installed power | 16 kW |
| Spindle rotation speed | 0 ÷ 9000 rpm |
| Tool holder | ISO BT 40 |
| Tool changer | Automatic |
| Tool magazine | 12 positions |
| Max. speed axes | 1181,10 in/min |
| Electro-spindle power | 5,5 KW |
| Template reader | Explorer laser 3D for model detecting |
| Inclined draining boards device | Laser pointer for the suction cups setup |
| Explorer 3000 - 3D model digitizer | Flatness control device |
| Y extra travel | Lathe |
| Additional tools magazine |
