SINK MASTER

Sink holes CNC machine cut and polish

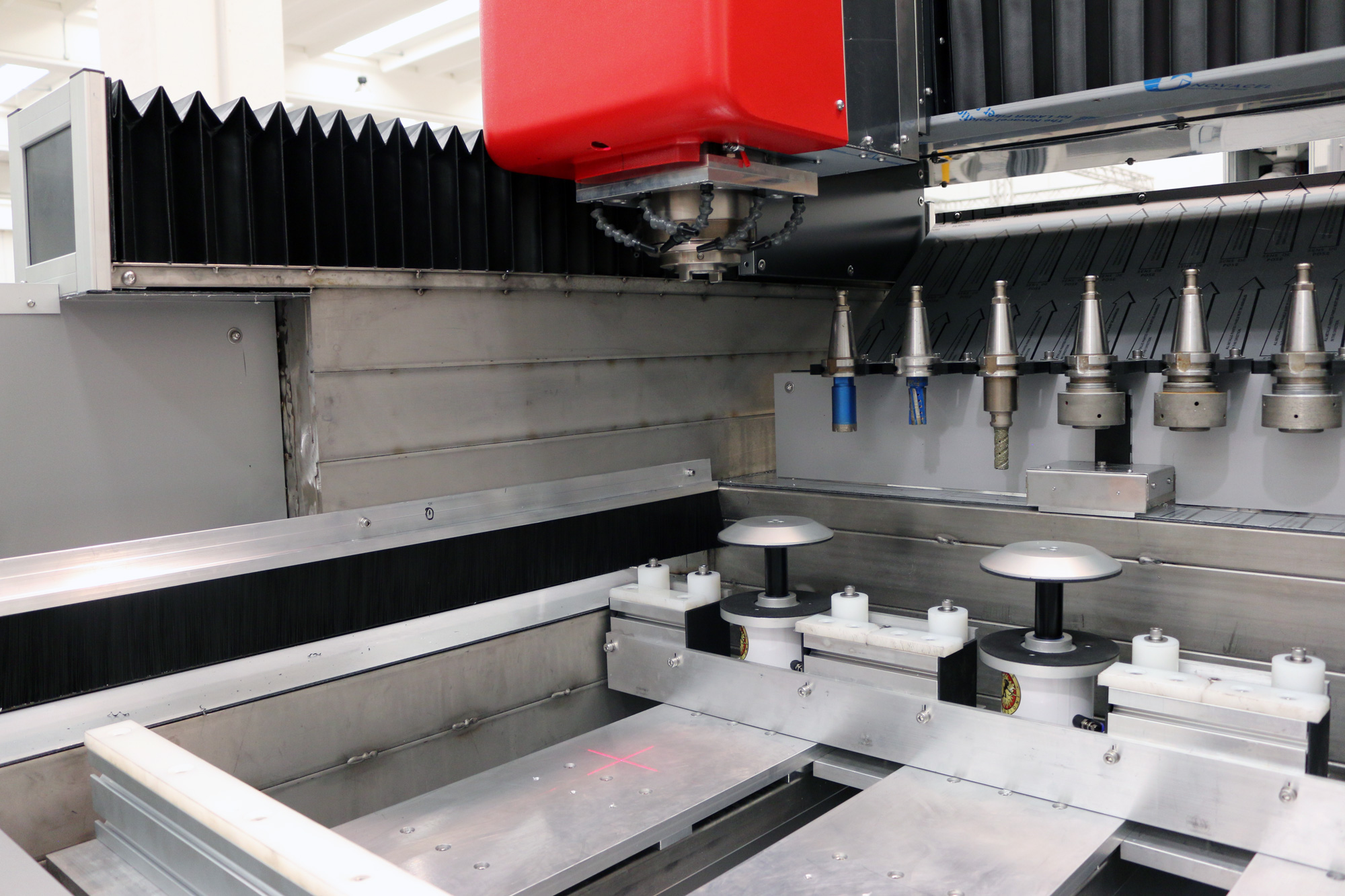

SINK MASTER is a machining center for sink holes and countertop cutouts. It can mill, drill, sink cut out, and pierce, it can also carry out edge contouring, rough or polished, with extreme precision. The stainless-steel structure guarantees resistance to corrosion and durability over time, keeping the machine performing even in demanding environments. The precision mechanics of screws and recirculating ball guides offers smooth and accurate movements, for high quality machining. The integrated software simplifies the programming and the control of processes, offering an intuitive and functional interface thanks to specific MACRO.

Sink Master
Overall dimensions 112,20*90,55*110,23 in
Working area X43,30 Y27,55 Z20,47 in
Power supply 400 V (3P+N+GND) 50/60 Hz
Installed power 6 kW
Spindle rotation speed 0 ÷ 10.000 rpm
Tool holder ISO BT 40
Tool change Manual pneumatic change
Spindle NDX 13 No. 4 mechanical clamps
No. 2 suction cups ⌀ 4,72 in Cross Laser
