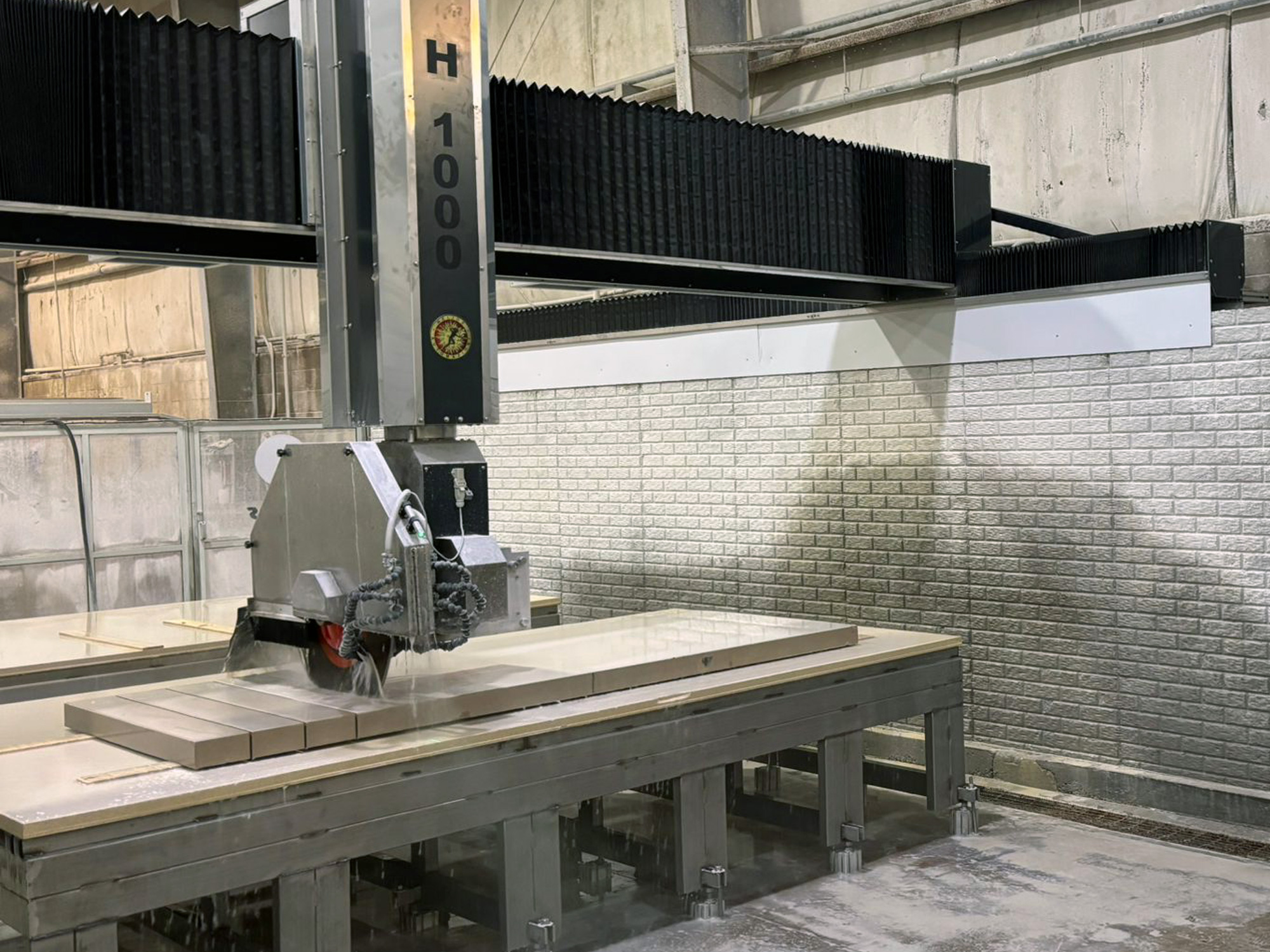

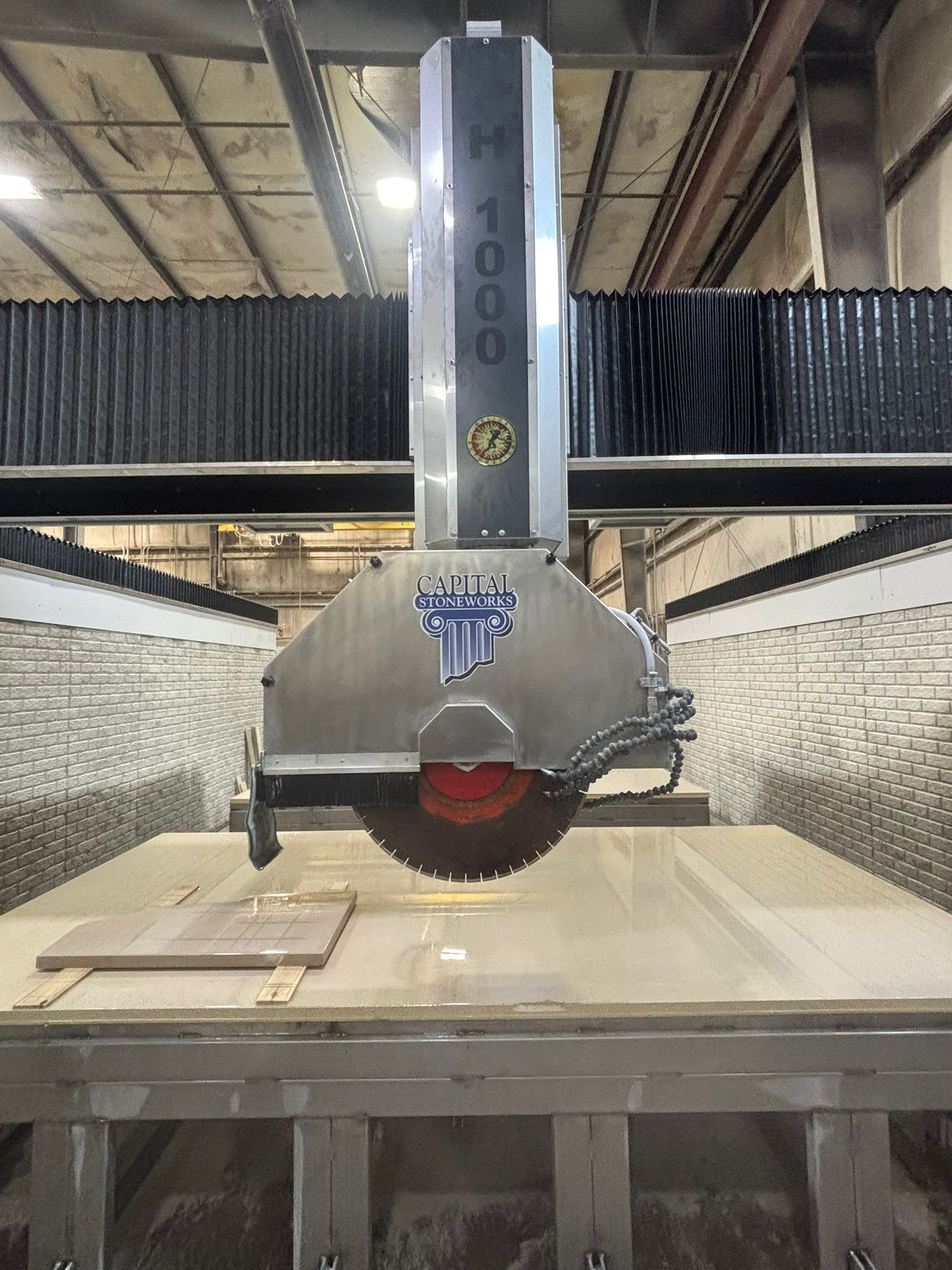

H 1000 is a 5-axis bridge saw, perfect for cutting large sizes and big thickness of stones. The bridge structure of the machines can be mounted on concrete or on galvanized carpentry structure, according to customer’s needs. The saw can be equipped with a tilting table, which allows the easy loading of the pieces and the Photoscan system, which is helpful for an interactive use of the machine. The Photoscan is a slabs scanner, a measuring system, and a template reader, which allows to start the cutting process just a click away. This series of bridge saws is very strong, performing, and precise.
• Extreme precise cuts of slabs with different size and thickness.
• Fabrication of bath and kitchen countertops, coverings and decorative walls.
• Artistic works on stone and porcelain materials.
| Concrete or galvanized carpentry structure | The bridge structure of the machines can be mounted on concrete or on galvanized carpentry structure, according to customer’s needs. |
|---|---|
| Stainless-steel working table | The stainless-steel table ensures a stable, durable and perfect surface to work all materials on. |
| Big working area | The machine can work different size pieces on 153,54 in x 118,11 in. |
| Z-Axis stroke | 22,83 in z-axis stroke allows 3D works with extremely accurate details. |
| Cutting versatility | H 1000 works with discs on marble, granite, quartz and ceramics, as well as with tools thanks to the second electro-spindle option. |
| Brushless motors | The advanced electronics of the brushless motors ensure stable and reliable performances. |
| Precision mechanics | Thanks to the recirculating ball screws and to the harmonic-drive gearboxes, the movements of the machine are fluid and precise. |
| Run-Touch software | The intuitive Run-Touch software makes the use of the machine simple and programming accessible even to less skilled operators. |
| Full warranty | The machine is covered by a 2-year full warranty, which makes you work carefree and safe. |
| H 1000 | |
|---|---|
| Working area | X153,54 - Y118,11 - Z22,83 in |
| W axis rotation | 0° ÷ 360° |
| A axis rotation | 90° ÷ -45° |
| Disc motor power | 23 kW - 31Hp |
| Disc motor rotation speed | 0 ÷ 4500 rpm |
| Installed power | 36 kW |
| Power supply | 400 V (3P + N + GND) 50/60 Hz |
| Max. speed axis X | 1181,10 in/min |
| Max. speed axis Y | 787,40 in/min |
| Max. speed axis Z | 393,70 in/min |
| Table dimensions | X137,79 - Y78,74in |
| Disk diameter | min. 15,74in - max.39,37in |
| Disk hole diameter | 2,36 in |
